Safety Lever and Safety Lever Sleeve Needed

[Pauly B.]

I will both call Larry DelGrego and join the Parker Gun Association!

[Dean Romig]

"All's well that ends well."

Mark - That's how it should work... not by bidding against each other but by sharing the wealth.

...No, I'm not a socialist but I do believe in taking care of each other for the common good.

[Smoothebore]

Paul, Is this your only Parker? I ask because if you have another as an example, These parts are fairly easy to make with a grinder and a drill. Several years ago I saved a similar GH. It had a replacement stock and no safety parts inside. The lever and sleeve is not really very high tech. It's just a lever that connects the safety slide, and when the safety is on, it swings into position to block the trigger blades from engaging the sears. It's more a matter of the angle that it is inletted into the stock, than the refinement of the lever itself. The jacket is just a sheet metal sleeve to wedge it into the stock so the lever swings freely. Sorry, I used to have some pics of it before my hard drive died a couple years ago.

Dave

[Pauly B.]

It is unfortunately, my only Parker, so I don't have a template to work from. If I don't find one, hopefully, eventually I will be able to buy another Parker and make one.

[Big Friend Ten (BFT)]

Paul,

So that we may communicate clearly please use the "Technical" reference diagrams from the PGCA main webpage. The links below will open to the diagrams and the list below provides the proper names of parts.

I thought you needed 2 seperate parts until I looked at the diagrams and realized that you need only one:

Part# 28) Safety lever and jacket

http://parkerguns.org/images/parts.jpg
http://parkerguns.org/images/tech_2.jpg

1) Right-hand hammer
2) Left-hand hammer
3) Hammer stirrup
4) Main spring
5) Main spring plunger
6) Sear
7) Sear spring
8) Right-hand trigger
9) Left-hand trigger
10) Trigger spring
11) Top lever
12) Extractor
13) Cocking slide
14) Bolt lever, with roll 15) Square top bolt
16) Round top bolt
17) Roll
18) Roll pin
19) Top lever spring
20) Trip, spring and pin
21) Unhooking slide
22) Cocking crank
23) Cocking hook
24) Cocking hook pin and spring
25) Cocking hook screw
26) Safety pin
27) Unhooking pin and spring 28) Safety lever and jacket
29) Safety slide
30) Safety slide spring
31) Sear Pin
32) Bushing for tang screw
33) Fore end lock, complete
34) Fore end lever
35) Fore end tumbler
36) Fore end lever spring
37) Guard bow
38) Trigger plate
39) Fore end iron

[Pauly B.]

Yes, you are correct it is part 28. I have an old Parker diagram that shows it in 3 parts (the jacket (sleeve), the lever, and the pin), but on the site it is Part 28.

[TARNATION !!!]

Originally Posted by Paul Bridges

Yes, you are correct it is part 28. I have an old Parker diagram that shows it in 3 parts (the jacket (sleeve), the lever, and the pin), but on the site it is Part 28.

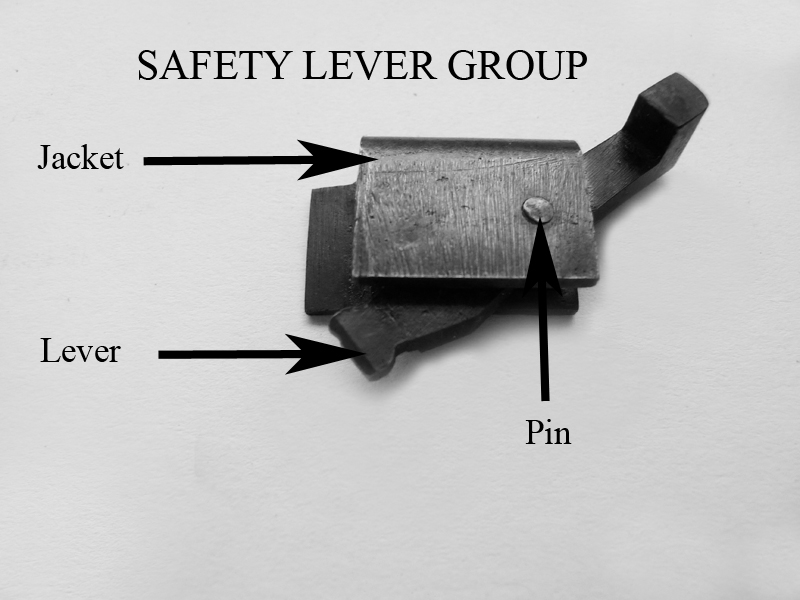

There are three parts involved

[Big Friend Ten (BFT)]

Paul,

If you want to make a the safety lever group send PS Forge a Paul Harm a PM. He has one that he is going to insert into a restock that never had one. I know this because I sold him the gun and bought the part for him from a PGCA member.

If there is a good machinst out there Paul may even loan this part to them so that they may copy it...

Mark

[Pauly B.]

Thanks for the info. I plan to start saving to buy a 10 gauge hammerless damascus gun, (I load all my shells with black powder) so if I don't find the safety lever and jacket by that time I will just make one using the original from the new gun as a pattern.

I appeciate everyone's input.

[David Hamilton]

Many people here have removed the safety actuating sliding pin in order to eliminate the automatic safety feature. Many Parkers were sold without safeties. David
