07-17-2017, 06:06 PM
|
#3 | ||||||
|

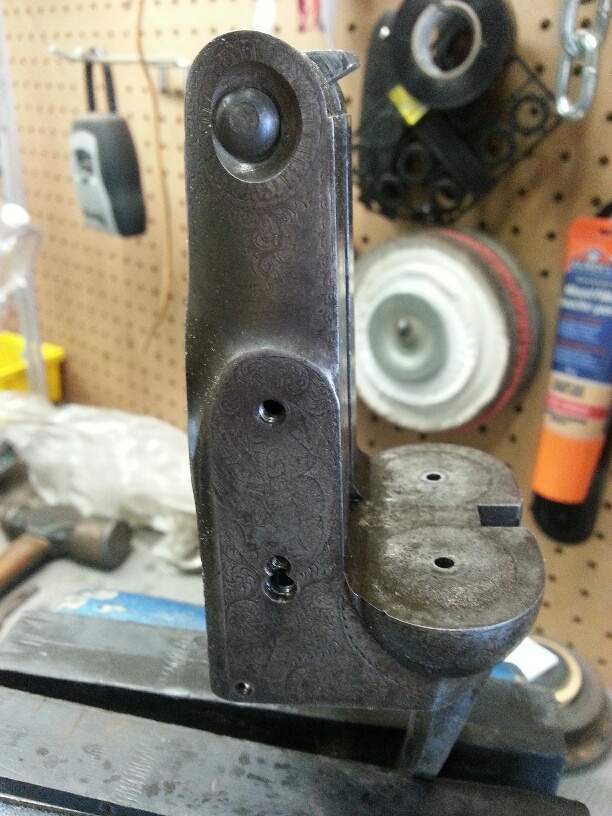

jack it looks to be a hammer or punch mark on the hing pin...looks like a good shooter to me...charlie
|
||||||
|
|
||||||
 |
 |
 |
|
|
|
07-17-2017, 06:26 PM
|
#4 | ||||||
|

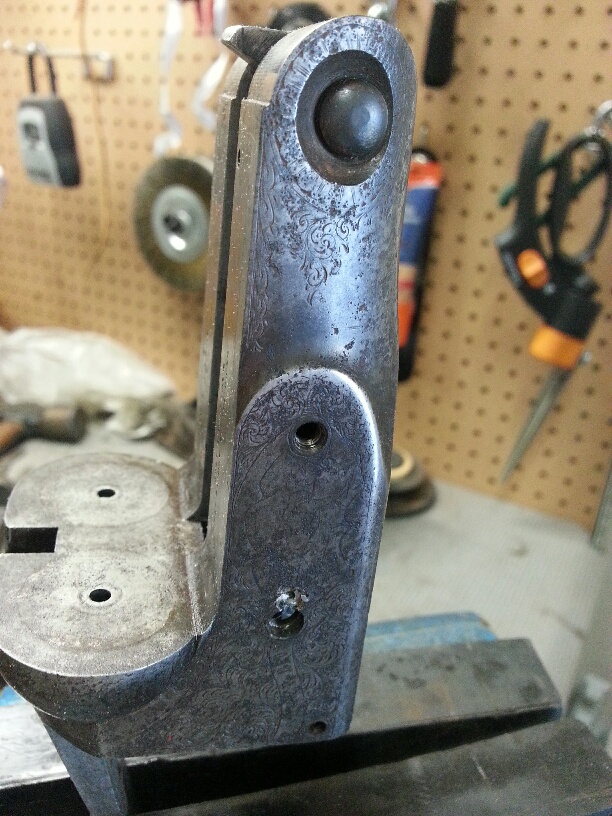

Correct me if I'm wrong, but...
shouldn't the left end of the hinge pin have a slotted cap screw? |
||||||
|
|
|
||||||
|
|
|
|
|
|
07-17-2017, 06:32 PM
|
#5 | ||||||
|
Gotta look a bit closer but you are getting warm. Only thing left in this frame Charlie is the pin and and the roll. Also barrels destroyed years ago. So it will take a lot to become a shooter but anything is possible with a bit of money, time and inclination to do so. I'm thinking that wouldn't be me. Keep looking though and you will get what's wrong. Cheers, Jack
__________________
Hunt ethically. Eat heartily. |
||||||
|
|
|
||||||
|
|
|
|
|
|
07-17-2017, 06:46 PM
|
#6 | ||||||
|
And we have a winner with John's critical eye. I have never removed a roll pin and the roll but I have these orphaned frames and 3 still had the roll and pin. I decided to play. I removed the roll and pin from a Trojan and learned it takes pretty hefty smacking. Also learned if I wanted to do this with a good gun not to use a flat punch. When I inserted this assembly into the D frame, it was a bit tighter than when in the Trojan. I remembered a set of punches with a round face and that didn't flatten the pin when re-inserting. Anyway, just playing today and definitely a D should have the slotted screw and pin, which are two pieces. I have started to appreciate the refinements in the Trojan, which were really cost cutting I'm sure but they are every bit as functional. By redesigning the top lever, Parker saved the fiddling with the round bolt/square bolt assembly. They also used a single sear spring to function for both sides and a single pin for the roll, saving the cost of drilling and tapping the pin and making the screw to fit. (mind you it doesn't look as nice imho). The forend iron has quite a different set-up which probably cost 1/10th of the Anson Deeley latch. Anyway, playing today but Charlie, I"m mostly playing with the '45 Farmall parts.
Cheers, Jack
__________________
Hunt ethically. Eat heartily. |
||||||
|
|
|
||||||
|
|
|
|
|
|
07-17-2017, 08:14 PM
|
#7 | ||||||
|

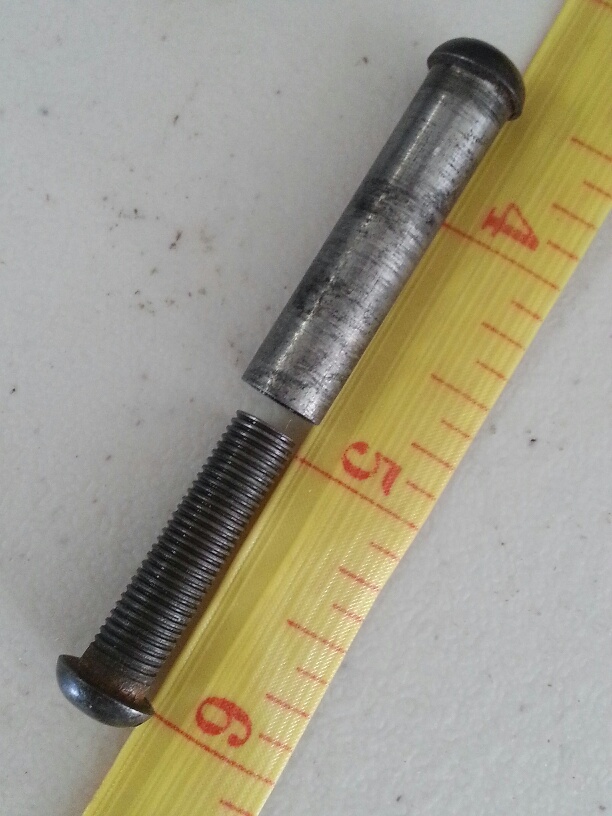

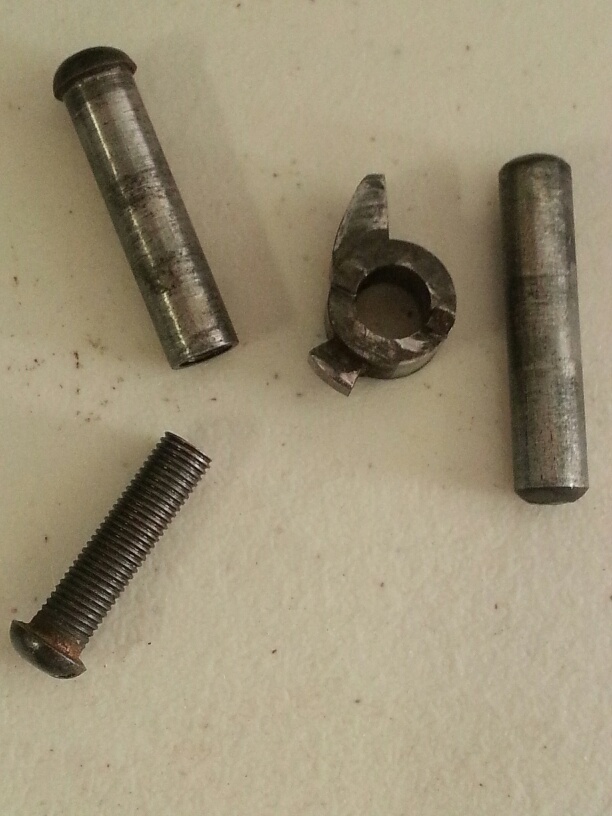

So here are the two types of roll pins that both fit the roll. The simple pin is from the Trojan. The screw and pin is from a hammerless gun. When you look at all those threads, then add moisture and 100 years you can imagine why it is so hard to undo the screw which is why we see so many buggered screw heads on the roll pin. Never really any need to remove these pins unless there is some major catastrophy.
__________________
Hunt ethically. Eat heartily. |
||||||
|
|
|
||||||
|
|
|
|
|
|
07-17-2017, 09:27 PM
|
#8 | ||||||
|
The first few years of all hammerless parkers had the old style 1pc hinge pin.
So, if the frame is in fact an early gun, there is in fact nothing "wrong" with it.
__________________
B. Dudley |
||||||
|
|
|
||||||
|
|
|
| The Following User Says Thank You to Brian Dudley For Your Post: |
|
|
|
07-17-2017, 09:52 PM
|
#9 | ||||||
|
The frame is 1901 manufacture. I think that should be the two part pin. But have learned now that early hammerless were also a simple pin. Thanks.
__________________
Hunt ethically. Eat heartily. |
||||||
|
|
|
||||||
|
|
|
|
|
|
07-17-2017, 10:21 PM
|
#10 | ||||||
|
Yes, a 1901 gun should have a 2pc pin. So that frame, incorrectly, had the eatlier style pin in it.
__________________
B. Dudley |
||||||
|
|
|
||||||
|
|
|
 |
|
|
