Parker Charcoal Case Hardening Colors and Metal to Wood Fit
Unread 10-14-2021, 05:21 PM   #1
Member
Bruce Day
PGCA Lifetime
Member

Bruce Day's Avatar

Member Info

Join Date: Nov 2008
Posts: 4,862
Thanks: 531
Thanked 14,598 Times in 2,542 Posts

Default Parker Charcoal Case Hardening Colors and Metal to Wood Fit

Sometimes people will attempt to duplicate original Parker case colors by a cyanide dip treatment or by burning oil onto the metal by a torch. Those attempts fall short of replicating original Parker bone charcoal colors , seen here. The Tiger striped cyanide colors caused by repeated dipping into a cyanide liquid bath are egregious. The brownish circular leaf blooms from the torch are worse.

Metal to wood fit should be so close that a sliver of paper cannot be inserted between. That is the way they were made .
Bruce Day is offline   Reply With Quote
Unread 10-14-2021, 06:05 PM   #2
Member
Dean Romig
PGCA Invincible
Life Member

Dean Romig's Avatar

Member Info

Join Date: Dec 2008
Posts: 28,334
Thanks: 28,138
Thanked 26,465 Times in 10,306 Posts

Default

To illustrate Bruce's point, here's an excellent example of the egregious job someone has done to this beat-up old Parker GH.

1. Cyanide dipped case color.
2. Poor wood to metal fit of the forend.
3. Forend iron is the wrong frame size for the gun.
4. Every screw on the gun was buggered even before coloring with no attempt to correct.
5. Floor plate screws are in the wrong holes.
6. No attempt was made to pick up the engraving before re-case coloring.
7. Forend wood is not original Parker.

Stay far, far away from guns like this...
I can criticize this gun and call it what it is (a bastard of a gun) because it used to be mine. It was the second I ever bought (more than 20 years ago) and boy did I ever make a mistake!!!


.
Attached Images
File Type: jpg 063_63.jpg (502.3 KB, 13 views)
File Type: jpg Dale Edmonds Work.jpg (179.0 KB, 14 views)
__________________
"I'm a Setter man.
Not because I think they're better than the other breeds,
but because I'm a romantic - stuck on tradition - and to me,
a Setter just "belongs" in the grouse picture."

George King, "That's Ruff", 2010 - a timeless classic.
Dean Romig is online now   Reply With Quote
The Following 8 Users Say Thank You to Dean Romig For Your Post:
Unread 10-15-2021, 05:26 PM   #3
Member
Austin J Hawthorne Jr.
PGCA Member

Member Info

Join Date: Aug 2009
Posts: 414
Thanks: 259
Thanked 251 Times in 140 Posts

Default

I like the damascus finish even if it is a little pale.
Austin J Hawthorne Jr. is online now   Reply With Quote
Unread 10-15-2021, 06:50 PM   #4
Member
B. Dudley
PGCA Lifetime
Member

Brian Dudley's Avatar

Member Info

Join Date: Aug 2011
Posts: 9,231
Thanks: 408
Thanked 13,085 Times in 3,693 Posts

Default

And the sad part is that far too many have no clue what is proper and improper work. Period.
__________________
B. Dudley
Brian Dudley is offline   Reply With Quote
The Following 8 Users Say Thank You to Brian Dudley For Your Post:
Visit Brian Dudley's homepage!
Unread 10-15-2021, 07:19 PM   #5
Member
Dean Romig
PGCA Invincible
Life Member

Dean Romig's Avatar

Member Info

Join Date: Dec 2008
Posts: 28,334
Thanks: 28,138
Thanked 26,465 Times in 10,306 Posts

Default

Quote:
Originally Posted by Austin J Hawthorne Jr. View Post
I like the damascus finish even if it is a little pale.
Dale Edmonds refinished the barrels for me. They had been blued.





.
__________________
"I'm a Setter man.
Not because I think they're better than the other breeds,
but because I'm a romantic - stuck on tradition - and to me,
a Setter just "belongs" in the grouse picture."

George King, "That's Ruff", 2010 - a timeless classic.
Dean Romig is online now   Reply With Quote
The Following User Says Thank You to Dean Romig For Your Post:
Unread 10-16-2021, 08:33 AM   #6
Member
Stan Hillis
PGCA Member

Member Info

Join Date: Oct 2015
Posts: 626
Thanks: 782
Thanked 1,265 Times in 395 Posts

Default

Salient points, Bruce. Concerning the wood to metal fit ..........

I have been considering a project to convert a restocked A grade Philly Fox from a semi-beavertail to a long splinter. Doing due diligence to determine if the wood is currently fitted closely enough to the underside and sides of the barrels, so as to not have unsightly gaps when the excess wood is cut away, I have been measuring how well the upper edges of the f/e wood is fitted to the barrels on many of my splinter f/e vintage guns.

I have yet to find one that is fitted snugly along these edges, including my high condition DHE Parker. My graded Foxes have a uniform space from front to within about an inch of the f/e iron that will accept .025" - .030" shim all that way. Make no mistake, these forends are tight to the gun, with no looseness, but the upper edges are not contacting the barrels.

If any of you have your better grades of American classics out any time soon, and can spare a moment to check that fit for me, would you please? I would be very appreciative.

Brian, could you shed any light on this from a gunstocker's point of view?

Last edited by Stan Hillis; 10-16-2021 at 08:36 AM.. Reason: dang spellcheck
Stan Hillis is offline   Reply With Quote
Unread 10-16-2021, 08:41 AM   #7
Member
Dean Romig
PGCA Invincible
Life Member

Dean Romig's Avatar

Member Info

Join Date: Dec 2008
Posts: 28,334
Thanks: 28,138
Thanked 26,465 Times in 10,306 Posts

Default

Stan, I would consider that wood shrinkage over 100 or so years might account for much of the gap. The forend fit to the barrels is not critical like it needs to be at the stock head to frame. And the shrinkage in the lenght of the grain is rarely what it is across the grain.





.
__________________
"I'm a Setter man.
Not because I think they're better than the other breeds,
but because I'm a romantic - stuck on tradition - and to me,
a Setter just "belongs" in the grouse picture."

George King, "That's Ruff", 2010 - a timeless classic.
Dean Romig is online now   Reply With Quote
The Following 2 Users Say Thank You to Dean Romig For Your Post:
Unread 10-16-2021, 09:00 AM   #8
Member
B. Dudley
PGCA Lifetime
Member

Brian Dudley's Avatar

Member Info

Join Date: Aug 2011
Posts: 9,231
Thanks: 408
Thanked 13,085 Times in 3,693 Posts

Default

Quote:
Originally Posted by Stan Hillis View Post
Salient points, Bruce. Concerning the wood to metal fit ..........

I have been considering a project to convert a restocked A grade Philly Fox from a semi-beavertail to a long splinter. Doing due diligence to determine if the wood is currently fitted closely enough to the underside and sides of the barrels, so as to not have unsightly gaps when the excess wood is cut away, I have been measuring how well the upper edges of the f/e wood is fitted to the barrels on many of my splinter f/e vintage guns.

I have yet to find one that is fitted snugly along these edges, including my high condition DHE Parker. My graded Foxes have a uniform space from front to within about an inch of the f/e iron that will accept .025" - .030" shim all that way. Make no mistake, these forends are tight to the gun, with no looseness, but the upper edges are not contacting the barrels.

If any of you have your better grades of American classics out any time soon, and can spare a moment to check that fit for me, would you please? I would be very appreciative.

Brian, could you shed any light on this from a gunstocker's point of view?


I would not place any bets on a beavertail being able to be successfully converted to a properly fitted splinter at all. The chances are very slim and there is no way of knowing until you cut it up and see what it looks like. There are so many contact points and if any one spot is off, it is no good. That is if you want it the way it should be.
A beavertail does not need 100% contact on the barrels, neither does a splinter for that matter. Just in the areas that you see. Even when you look at factory guns with use, the bluing will wear along the edges where the wood contacts, and maybe a few other areas, but that is all. Not that the other surfaces are not a close fit, they just are not full contact.
With a beavertail the amount of fitting work is significantly greater than a splinter, I personally charge twice the price to make a beavertail as I do a splinter. At least for a Parker, because there is a draw-bolt also involved. But anyway…
It many cases, a splinter is usually more tightly fitted than a beavertail, especially a full beavertail that really comes up around the sides of the barrels.

To summarize. Cut the sides off your fox forend and see what you are dealing with, but you should really be budgeting on just having a new forend made in the end.
__________________
B. Dudley
Brian Dudley is offline   Reply With Quote
The Following 4 Users Say Thank You to Brian Dudley For Your Post:
Visit Brian Dudley's homepage!
Unread 10-16-2021, 10:00 AM   #9
Member
Stan Hillis
PGCA Member

Member Info

Join Date: Oct 2015
Posts: 626
Thanks: 782
Thanked 1,265 Times in 395 Posts

Default

Thank you Brian, very much. I have been given that advice from a couple other friends on another board. The "evidence" is piling up. If a professional gun stocker cannot tell beforehand if an existing btfe could be successfully converted to splinter, I certainly doubt my abilities to.

My desire to have a splinter on the gun in question is strictly aesthetical. It is a pretty restock, well done, and is not a huge beavertail. But, the gun is a 32" barreled A grade that just screams out for a long, ebony tipped forend, IMO. It's just something I "want". It seems that a new forend may be the way to go. I just have my doubts at being able to match wood grain and color with a new piece of wood.

What degree of contact do you try to achieve, along those upper edges, when doing a restock on a splinter f/e?

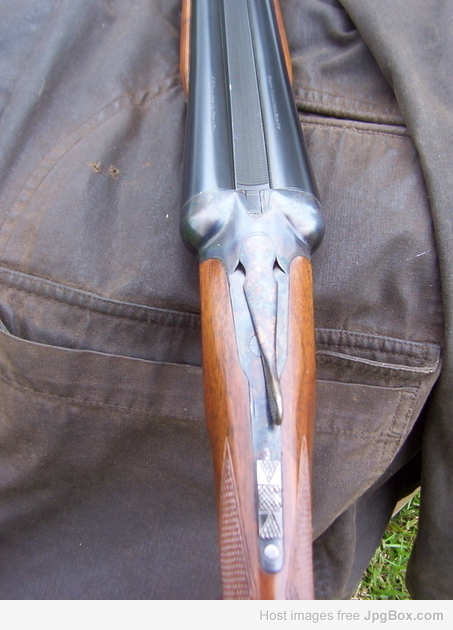

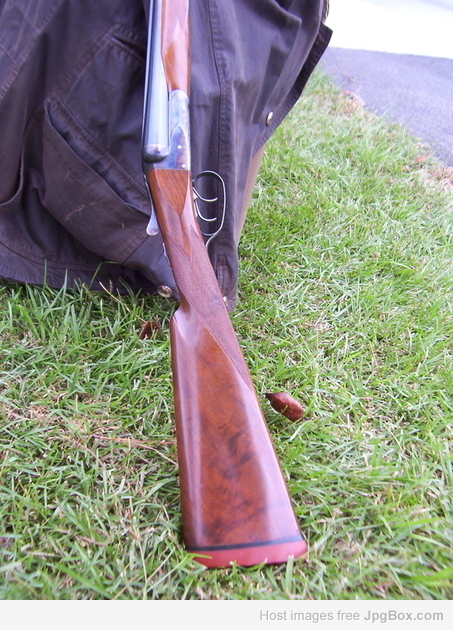

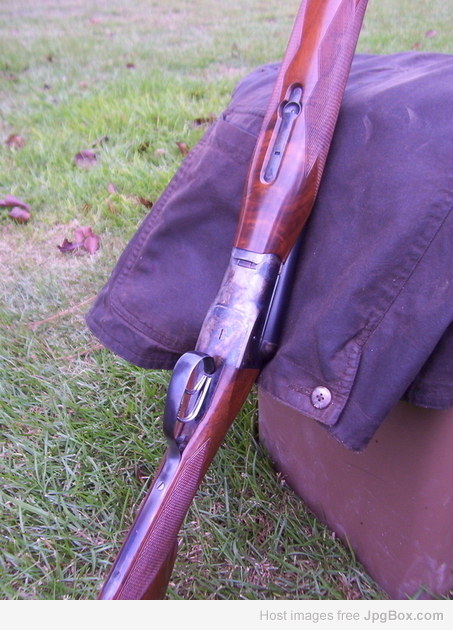

Here's the gun in question:







Thanks again for the help, and apologies Bruce, if I'm causing the thread to stray too much.
Stan Hillis is offline   Reply With Quote
The Following 3 Users Say Thank You to Stan Hillis For Your Post:
Unread 10-16-2021, 10:07 AM   #10
Member
B. Dudley
PGCA Lifetime
Member

Brian Dudley's Avatar

Member Info

Join Date: Aug 2011
Posts: 9,231
Thanks: 408
Thanked 13,085 Times in 3,693 Posts

Default

Matching wood figure and color for that would not be difficult at all if one has a selection to choose from.
__________________
B. Dudley
Brian Dudley is offline   Reply With Quote
The Following 3 Users Say Thank You to Brian Dudley For Your Post:
Visit Brian Dudley's homepage!
